Air filtration is where Pakistani operating conditions are hardest on equipment. An engine draws hundreds of cubic metres of air an hour, and every bit of it goes through the element.
Air filters are the only one of the four types with no bypass valve, and that is deliberate: it is better for an engine to be starved of air than fed unfiltered air. So a blocked air filter announces itself through lost power and black smoke rather than quietly going out of circuit.
Two seal types appear below and they are not interchangeable even where the dimensions look close. An axial seal clamps flat between the housing and the cover. A radial seal seals on its inside diameter against the housing neck. Check which one your cleaner takes.
Where a housing holds a second, inner element, that safety filter has its own number and its own interval — the AF424 pairs with the AF820M, for instance. More in choosing the correct air filter and air filter troubleshooting.
The Perkins numbers are listed differently from the rest, and deliberately. Perkins publish fitment by engine rather than by dimension, so each card leads with the engine series and the exact models the part is fitted to. That is how a Perkins buyer identifies a filter anyway: from the engine plate, not from a tape measure. If you have the engine number, send it and we will match the part to it.
The three Perkins elements below cover most of the range between them: 26510337 for the 100 and 400 Series and smaller 1100 engines, 26510342 for the 1104 and 4.236, and 26510353 for the six-cylinder 1006, 1106 and 1206. They are primary elements, so check whether your housing also takes a safety element behind it.
11 air filter numbers we are asked for most often, across Fleetguard and Perkins. Our range is far wider than this — if your number is not listed, it is very likely we can still supply it or match an equivalent.
Fleetguard
Primary air filter, axial seal

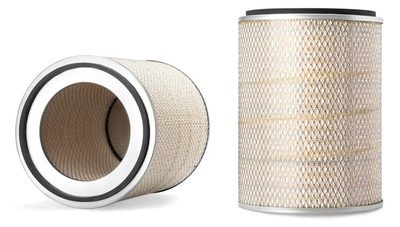

The Magnum version of the AF928, built for longer life in dusty work.
Typical applications International DT466, DTA466, D150, D170 and D190; Cummins L10 and M11; Caterpillar 3206, 3208, 3306 and 3406; Volvo WX; Beiben 2536.

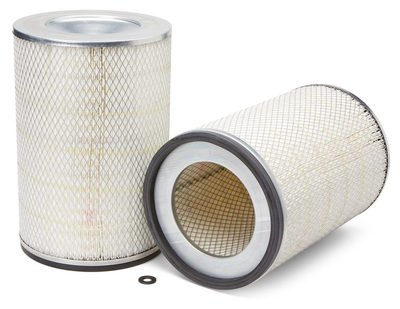

Fleetguard
Primary air filter, axial seal
Fit the AF820M safety element alongside it where the housing takes one.
Typical applications Ford Cargo, Volvo, Komatsu, John Deere, Mitsubishi, Massey Ferguson, Grove, Ingersoll-Rand, Hitachi, Iveco and Ashok Leyland.
Fleetguard

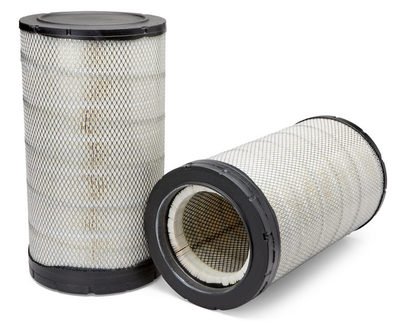

Primary air filter, radial seal
A radial seal element, which seals on its inside diameter against the housing neck rather than clamping flat. Tested to ISO 5011.
Typical applications Generator sets and power equipment with DP180LA series engines.
Fleetguard
Primary air filter, axial seal
Tested to ISO 5011.
Typical applications Ford Cargo 1982 to 1987; Ashok Leyland and E.R.F. vehicles with V-504, Dover and 6.354.4 engines.
Fleetguard
Primary air filter, axial seal
Tested to ISO 5011. A common genset air filter.
Typical applications Cummins QSX15-C, NTA855-G5, QSL9-G5-400 and QSX15-G8 engines, commonly in generator sets.
Fleetguard
Primary air filter, axial seal
Typical applications Hyundai HL780-7A; Grove TM-875, TMS800E and TMS9000E; Clark Equipment 275B; Atlas Copco 130C; Bandit Industries 3680.
Fleetguard
Primary air filter, axial seal
The largest element on this list, for big mining and quarry plant.
Typical applications Komatsu, Terex, Liebherr, Wirtgen, Kaeser and Belaz machines with KTA-3067, QSK19, KTA50 and C27 ATAAC engines.
Fleetguard
Primary air filter, axial seal
Typical applications Caterpillar D330, 3304, 3304B, 3306, 3306B, D330C and G333 series engines; Garwood-Buckeye, Athey Products and Towmotor equipment.

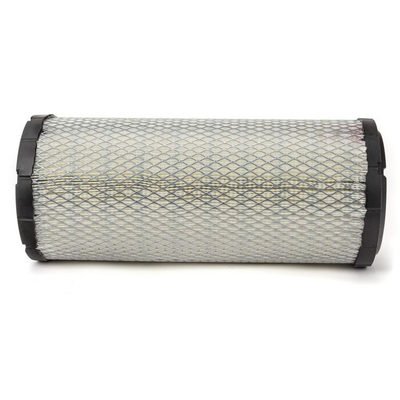

Perkins
Primary air filter element
The smallest of the three Perkins air elements listed here, for the 100 and 400 Series through to the smaller 1100 engines.
Typical applications Perkins 1004-4, 1004-40, 1004-42, 104.19, 104.22, 1103A-33, 1103A-33T, 1103C-33, 1103C-33T, 1103D-33, 1104A-44, 1104C-44 and 404C-22 engines.

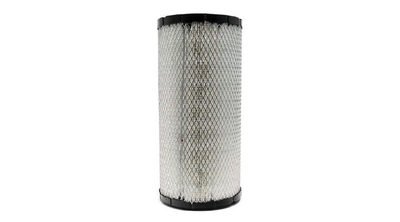

Perkins
Primary air filter element
The middle size, and the common one on 1104 engines.
Typical applications Perkins 1004-4, 1004-40T, 1004-42, 1006-6, 1006-60, 1104A-44T, 1104C-44T, 1104C-E44T, 1104D-44T, 4.236, 4.41, 854E-E34TA, 854F-E34T and T4.236 engines.

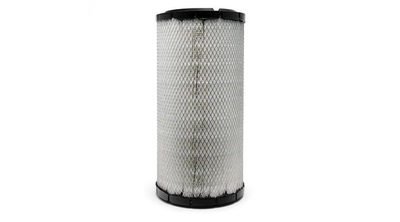

Perkins
Primary air filter element
The largest of the three, for the six-cylinder 1006, 1106 and 1206 engines.
Typical applications Perkins 1006-60T, 1006-60TW, 1006-6T, 1106C-E66TA, 1106D-E66TA, 1206E-E70TTA, 1206F-E70TTA and 1206J-E70TTA engines.
This is a shortlist, not our range. Send us the number stamped on the old element, or the make and model of the machine, and we will identify the right part, confirm the fitment and quote it with availability. We can also cross a number from one brand to its equivalent in another.
